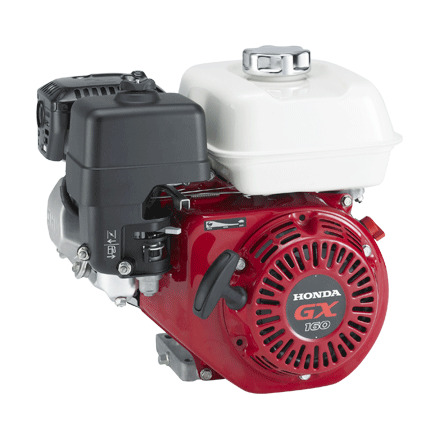

Honda GX160 Engine

The GX160 is a horizontal shaft engine and a flagship model in Honda’s GX range with superior reliability, performance and long product life. Often used on water blasters, pumps, generators, construction and commercial lawn care equipment.

Honda reliability - When it comes to engines, Honda set the benchmark for reliability and long life.

Precision engineering - Ball-bearing supported crankshaft, helical cut gears and precision engineered components resulting in greater stability and lower vibration for easy operation.

OHV - Over Head Valve engine have the valves located in the roof of the cylinder head. This permits smoother fuel intake and a quicker and more complete exhaust. This further results in an increased combustion efficiency and enables a higher compression ratio to be used. A greater power output is achieved whilst avoiding the build-up of carbon.

Commercial grade - Built for work this engine features a cast-iron cylinder sleeve to increase protection against engine wear caused by tough and constant use.

Oil alert - Low oil alert switch protects engine against inadequate oil in sump – the engine will not start.

Air cleaner - Dual element air cleaner for maximum service life and engine protection.

Power and Torque - Larger diameter valves maximise the power output and support performance over the entire speed range.

Ease of service - Easy to access spark plug, filter and large fuel tank opening.

Camshaft design - Honda’s camshaft design offers precise valve timing and optimal valve overlap for best fuel efficiency. This draws on decades of Honda’s engineering expertise finely tuned over time.

Exhaust - Multi-chambered exhaust system to manage decibel output

Fuel tank - Large capacity 3.1L fuel tank

Fuel consumption - 1.4 L/h at 3600rpm

Oil drain - Dual oil drains for quick and easy oil changes.

Dimensions - 312 x 362 x 346 mm

9 different variants - 6:1 reduction, 2:1 reduction, threaded pump shaft, 3/4", 20mm, electric start, 5/8" UMF threaded pump shaft. Enquire for price on these variants.
